Knot Mosaics for the 11a_59 Knot

For many knots, the tile number and/or crossing number cannot be realized when the mosaic number is realized.

The mosaic of the 11a59 knot given in the table has the mosaic number and crossing number realized, but the tile number of this knot cannot be realized on a 6-mosaic. On a 6-mosaic, the fewest number of non-blank tiles needed to create this knot is 32. However, the tile number of this knot is 29, and this cannot be realized on anything smaller than a 7-mosaic. Below are the relevant mosaics.

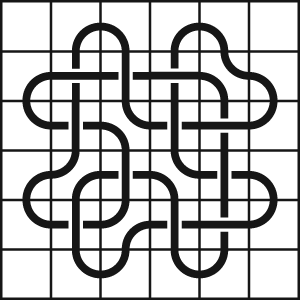

11a59 with mosaic number realized
11a59 with tile number realized

Back to the Knot Mosaic Table

References:

Heap, A.; Knowles, D. Tile Number and Space-Efficient Knot Mosaics; J. Knot Theory Ramif. 2018, 27.
Heap, A.; Knowles, D. Space-Efficient Knot Mosaics for Prime Knots with Mosaic Number 6; Involve 2019, 12.
Heap, A.; Baldwin, D.; Canning, J.; Vinal, G. Knot Mosaics For Prime Knots with Crossing Number 10 or Less; in preparation.
